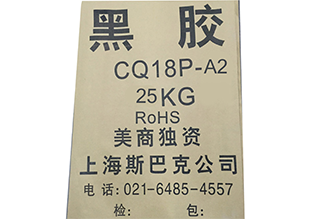

CQ18P-A2 Potting Compound for Electronic Product

CQ18P-A2 Potting Compound for Electronic Product

In order to match the potting black glue, Spark also customizes the black glue machine for customers. Many domestic and foreign companies, such as Philips and Osram, use the vinyl machine to pot seal the products. The advantages of using a vinyl machine are that it is easy to operate, ensures high quality and high efficiency of potting, and the working environment is environmentally friendly and clean.

Product details

  CQ18P-A2 Potting Compound for Electronic Product (Specifications)

1. Softening Point(℃ ) >120 ASTM D36-86
2. Pouring Temperature(℃) 134-143
3. Heat Conductivity (*BTU-Inch/DegF/Sq.ft/hr.) >3.0 ASTM D6
4. Percent Shrinkage (%, at 125℃-25℃) <4.0
5. Penetration (mm, at 25℃/100g/5 sec) 1.5-2.3 ASTM D5
6. Dielectric Strength (KV) >23
7. Flash point (℃) >280 ASTM D92
8. Specific Gravity 1.4-1.6 ASTM D176
9. Toxicity None
